In chemical synthesis, thermal extraction, and liquid purification, Laboratory Glassware Condensers are fundamental instruments. These precision units convert vapor back into liquid phase through efficient heat transfer. Selecting the correct glass condenser is critical to maintaining process safety, maximizing product yield, and ensuring structural stability under high thermal loads.

Whether running routine reflux reactions or complex multi-stage fractional distillations, understanding the mechanical design, cooling surface dynamics, and vapor flow behavior of Chemical Laboratory Condensers allows researchers and chemical technicians to select optimal setups for their specific workflows.

What is a Laboratory Glass Condenser?

A Laboratory Glass Condenser consists of a dual-chamber or coiled glass assembly designed to cool vapor streams. Vapor enters the inner chamber while a cold coolant (typically water or specialized fluid) flows through an adjacent outer jacket or internal coil. As hot vapor contacts the chilled inner surfaces, it loses latent heat and condenses into a liquid distillate.

Liebig Condenser

Allihn Condenser

Graham Condenser

Dimroth Condenser

Condenser Mechanism & Working Flow

Core Working Principle

1. Vapor Entry: Hot vapor rises from a boiling flask into the inner channel.
2. Heat Exchange: Thermal energy transfers across thin Borosilicate Glass Condensers walls into the surrounding fluid medium.
3. Phase Change: The vapor condenses into liquid droplets on the internal surface.
4. Collection/Reflux: Condensed liquid drains downward via gravity into a receiving flask or returns directly to the reaction vessel.

High-grade Scientific Glassware Condensers are engineered using 3.3 borosilicate glass to handle extreme temperature gradients (ΔT) and aggressive chemical exposure without cracking or leaching impurities.

Product Catalog Direct Links

Common Types of Laboratory Glassware Condensers

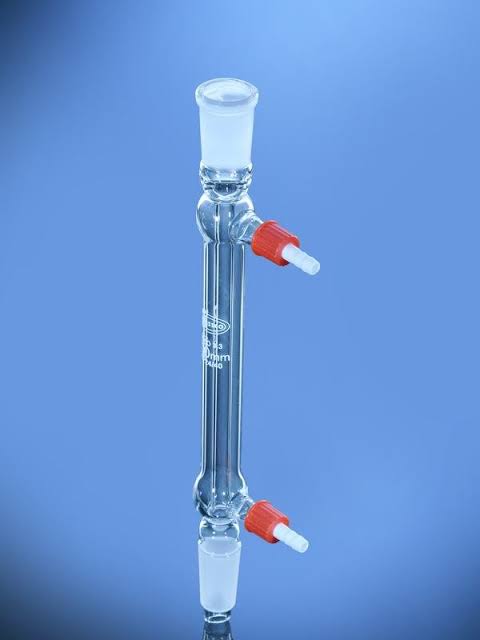

1. Liebig Condenser (Straight Condenser)

The Liebig Condenser features a simple Straight Condenser design with a straight inner tube surrounded by an outer cooling jacket.

• Primary Applications: Simple distillation setups where liquid boils over a wide temperature range.
• Orientation: Slanted downward.
• Key Benefit: Low fluid resistance and easy manual cleaning.

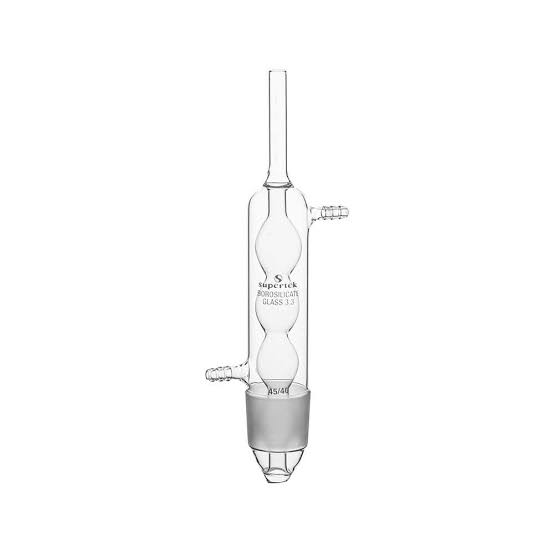

2. Allihn Condenser (Bulb Condenser)

The Allihn Condenser incorporates a series of glass bulbs along its inner tube, significantly expanding the cooling surface area compared to straight designs.

• Primary Applications: Vertical Reflux Condenser operations in organic synthesis.
• Key Feature: Bulbs increase surface area and induce vapor turbulence.
• Note: Not suitable for horizontal distillation because liquid pools inside the lower bulb contours.

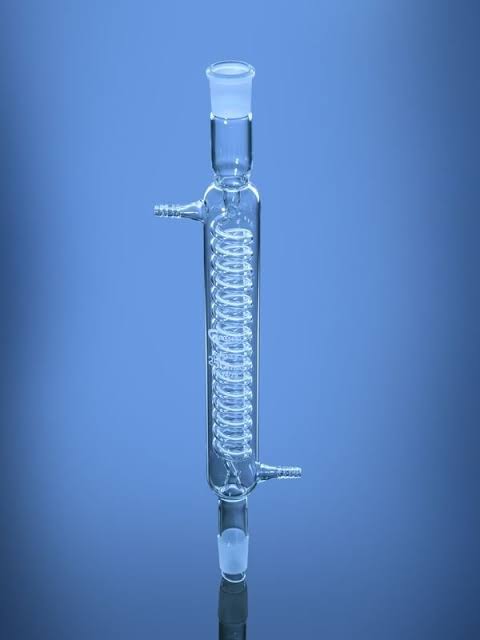

3. Graham Condenser (Coil Condenser)

A Graham Condenser uses an internal spiral coil that forces vapor through a long path within a liquid-jacketed shell.

• Primary Applications: High-efficiency downward distillation of volatile compounds.
• Key Feature: Extended path length maximizes cooling time.
• Caution: High vapor pressure can flood the internal coil if vapor flow rates are excessive.

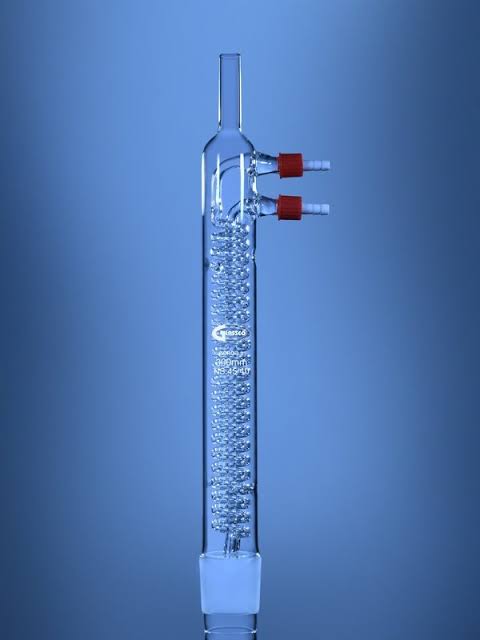

4. Dimroth Condenser

The Dimroth Condenser flips the traditional coolant path: coolant flows through an internal double spiral coil while vapor travels around the coil within the outer shell.

• Primary Applications: High-throughput refluxing and volatile solvent recovery.
• Key Advantage: Thermal stress stays centered within the coil, reducing glass breakage risks during high heat transfer rates.

5. Air Condenser

An Air Condenser consists of a single glass tube without an external water jacket, relying solely on ambient air heat dissipation.

• Primary Applications: High-boiling liquids (boiling point >150°C).
• Key Benefit: Eliminates thermal shock risks associated with water cooling high-temperature vapors.

Technical Comparison of Glassware Condensers

Key Factors for Selecting Laboratory Glass Condensers

Selecting appropriate Glassware Condensers requires evaluating process requirements against equipment limits:

1. Operating Orientation:
   • Downward configurations require smooth-draining paths (Straight Condenser / Liebig or Graham).
   • Vertical setups benefit from surface-expanding geometries (Allihn Condenser or Dimroth).
2. Vapor Flow Rate & Thermal Load:
   • Higher vapor throughput requires higher surface-area-to-volume ratios (Coil Condenser or Dimroth) to avoid vapor blow-by.
3. Thermal Shock Resistance:
   • Premium Borosilicate Glass Condensers are essential for withstand thermal gradients without micro-fracturing.
4. Joint Precision:
   • Ground-glass joints (e.g., ST 24/40 or ST 29/32) must match reaction flasks perfectly to maintain airtight, leak-free seals under negative vacuum pressure.

Partnering with an established Laboratory Glassware Condensers Manufacturer like Psaw India ensures access to precision-ground joint fittings, uniform wall thicknesses, and high-purity borosilicate manufacturing standards.

Care, Maintenance & Safe Operation

• Counter-Current Water Flow: Always connect the coolant supply hose to the bottom inlet and the drain hose to the top outlet. This ensures the cooling jacket remains completely filled without trapped air pockets.
• Avoid Over-tightening Clamps: Secure condensers using rubber-coated laboratory clamps. Excessive mechanical clamping pressure on ground glass joints can lead to stress fractures.
• Cleaning Protocol: Soak contaminated Chemical Laboratory Condensers in appropriate solvent baths. For mineral scale removal caused by hard water in cooling jackets, flush with a dilute acid solution (5% citric or acetic acid).
• Storage: Store Laboratory Glass Condenser units vertically in cushioned racks or horizontally wrapped in protective bubble lining.
